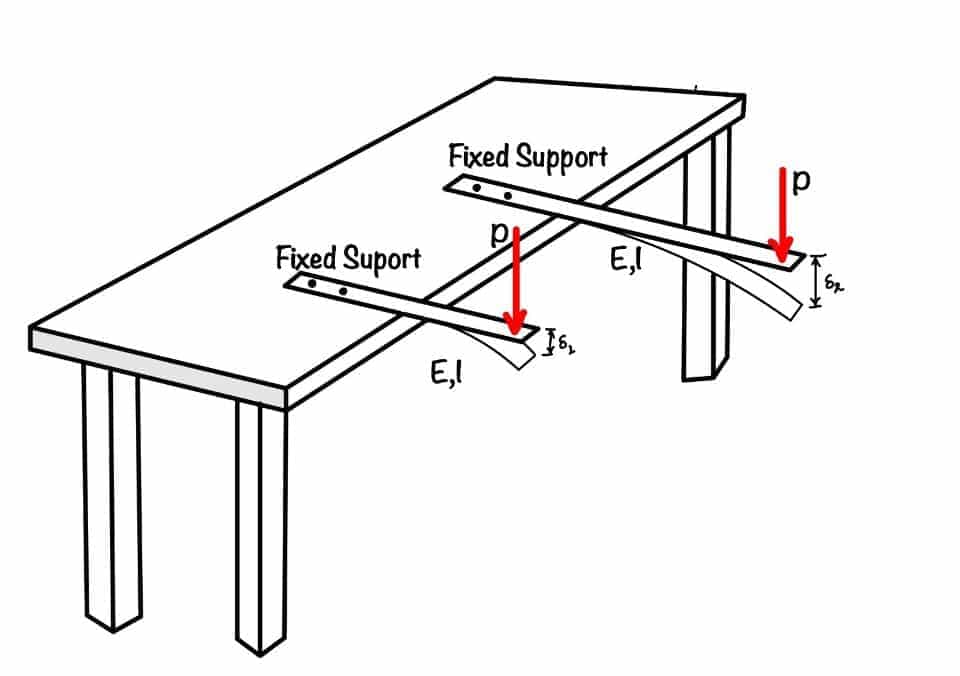

To illustrate the importance of bending moment, let’s conduct a simple demonstration. Place a ruler flat on a desk and push it downwards. You will notice that as the length of the ruler on the desk decreases, the harder it becomes to bend it by the same amount. This is the basic principle behind the concept of bending moment.

The bending moment is a measure of the force applied to an object that causes it to bend, and is calculated by multiplying the force by the distance from the point of bending.

Bending moment is a crucial concept in the field of engineering and design. It is used to determine the strength and stability of structures such as bridges and buildings. In order to understand bending moment, it is important to first understand the concept of force. The article explains how to calculate the bending moment, and provides examples of different types of moments and their effects on a structure.

## What is the definition of force?

The basic definition of force that we have learned is that force is **push and pull**. Force, when applied to an object, tends to change its motion or its shape.

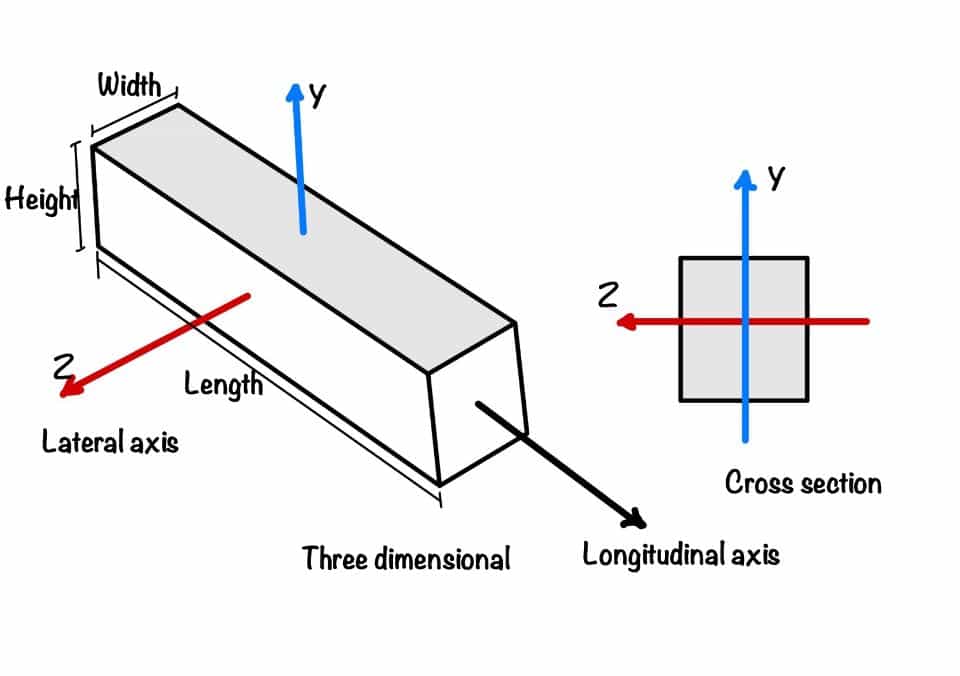

In structural engineering, we have well-defined cross sections and the members have a longitudinal axis and a lateral axis.

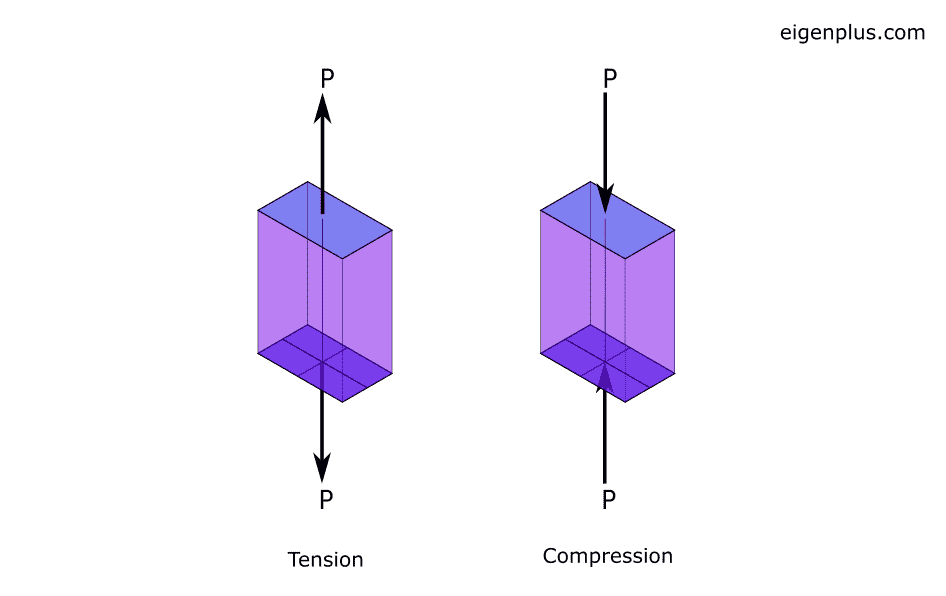

A force applied in the longitudinal axis of the member would tend to** elongate (Tensile Force) or compress (Compressive Force)** the member.

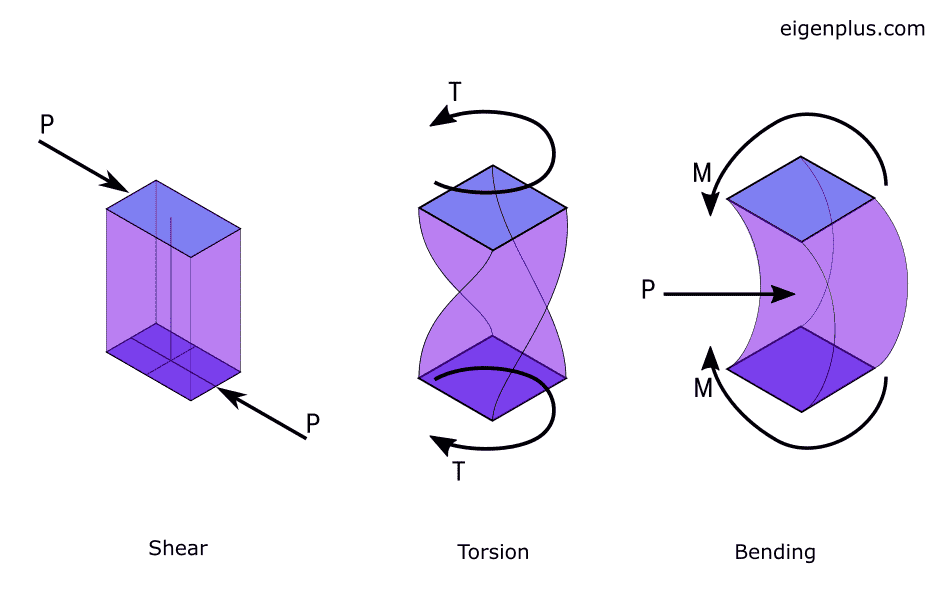

A force applied in the lateral axis would try to **slice off the member (Shear force) or would try to bend the member (Bending Moment).**

## How and why is bending moment different from the other three?

The amount of** elongation, compression or shearing** is directly dependent on the magnitude of the force applied.

More is the force more is it effect.

But same is not the case with rotation. The same amount of force if applied at a greater distance would produce greater rotation.

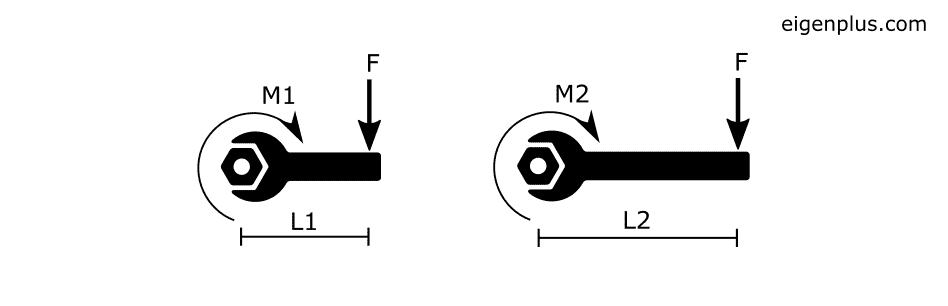

In the above figure with the same magnitude of force(F) the rotation would be more in the second case since the lever arm is more and thus the moment is more.

Thus it’s not the magnitude of the force but also the distance at which it is applied that tells us about its effect. So we multiplied the two quantities and gave it a name as the **moment of force**.

The turning effect of a force is known as the moment.

Moment of force is the **product of force and the distance** of the force from the point of interest.

## What is bending moment?

If this **moment of force** tries to **twist** the member then we call it** twisting moment** or torsional moment and if this moment of force tries to **bend** the member then we call it **bending moment.**

## What is Moment of Resistance?

When a body is strained it tries to resist that by generating internal stresses. Stress is the **resistance** offered by a body to the external force.

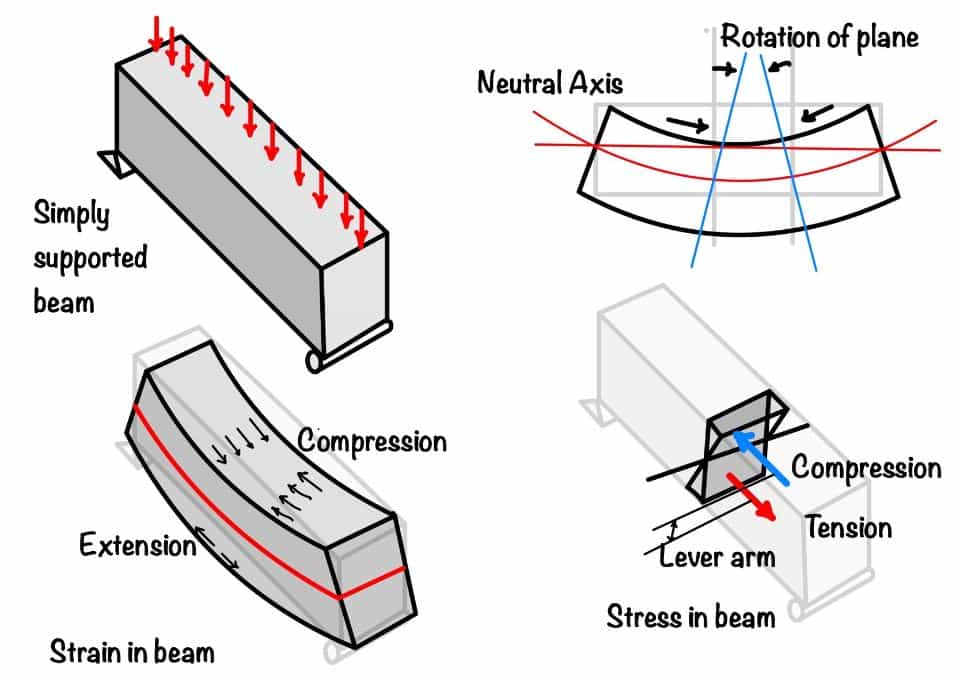

When a beam bends the concave face of the beam is under compression and the convex face is under tension. These compressive and tensile strains produce compressive and tensile stresses (**resistance**) in the beam respectively. The couple formed by these resistive forces is termed as** moment of resistance.**

## What is Ultimate Moment of Resistance?

If we consider the compressive and tensile stress in the beam to be equal to the tensile and compressive strength of the material then the couple formed by them is termed as ultimate moment of resistance or the Ultimate Bending Moment since the beam cannot take bending moment more than that.

## Conclusion

**The following key concepts were discussed in this post:**

**Force:**In simplest terms push and pull is termed force.**Moment:**The turning effect of force is known as moment**Moment of Force:**It is the product of force and the distance of the force from the point of interest.**Bending Moment:**If moment of force tries to bend the member then we call it bending moment.**Torsional moment:**If moment of force tries to twist the member then we call it torsional or twisting moment.**Moment of resistance:**The moment of force generated from stress.**Ultimate moment of resistance:**The moment of force calculated corresponding to the strength of material.
